Features 2-Stage Open/Close 2-Stage Open/Close Ball Valve Construction Valve Body Pocket (contamination) Seat Double Seat Double Seat Eccentricity Double Eccentricity PATENTED UNICUT Double Seat Disc/Shaft 1-piece Shaft(Fixed) 2-piece Shaft(Movable) Fire Safe API/BS Approved − 2-Stage Open/Close Cylinder Spring Return (Emergency Shutoff Possible) Double Acting Performance Bi-directional Sealing Complete Complete Seat Life 10 times longer than that of Ball Valve − SeatTorque required Only 1/4 that of Ball valve − Cylinder Durability More than 100,000 cycles − Maintenance Operation Cost

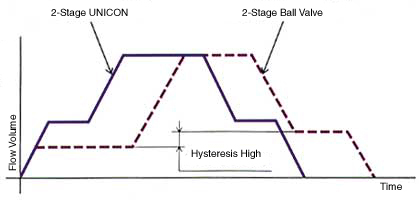

Loading Time at Lorry Dispatch

Leakage after closing UNICON:0.9L(measured actually) Ball Valve:more than UNICON due to its slow shutoff speed

UNICON employs Multi-Spring in Actuator. UNICON can solve the backlash problem at the connection part. Ball Valve results in much higer hysteresis due to backlash at the ball and stem.

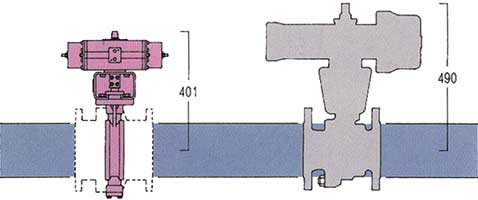

Wafer Type 36kg Double Flange Type 62kg

90kg

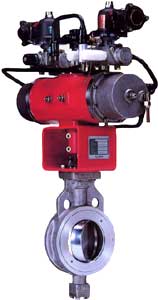

Wafer Type

Double Flange Type

Complete Bi-directional Sealing. Double Seat eliminates deforming or damaging under high differential pressure and high fluid velocity.

The disc moves entirely away from the seat at all points in the very few degrees. This assures a long seat life.

UNICUT prevents abrasion and wear that may occur between disc and metal seat. This assures a longer sealing life.

TA-LUFT Approved. It prevents external leakage from the gland. Double sealing allows maintenance free.

Seat replacement can be done very easily and quickly without disassembling the shaft and disc.

SPECIFICATIONS

Valve

Connection Wafer Type,Double Flange Type,Single Flange Type Rating JIS10K, JPI/ANSI Class 150 Nominal Size 50A(2″）,80A(3″）,100A(4″） Body WCB,CF8,CF8M Soft Double Seat PTFE/316SS Metal Seat Inconel Allowable Leakage Soft Double Seat:Bubble Tight Metal Seat:ANSI Class V

Actuator

Type NC20S-4P NC35S-4P Construction Spring return type,Scotch Yoke Type Body Ductile Sub-Cylinder 304SS Operating Pressure 0.39MPa (4kgf/cm2) Operating Range 0 〜 50％ Allowable Environmental Temperature -20℃〜80℃

Accessories

Air Set XR108×1 Solenoid Valve M15G-8-AE12PU×2 d2G4(4way) Speed Controller AS 4000×3 Silencer AN 200×4
