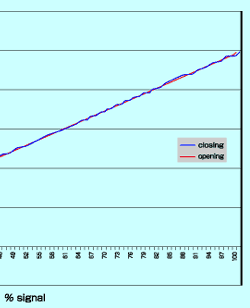

Flow Controllability(8")
Comparison(% CV value)
Nominal Size UNICON Globe
2"(50mm) 44 44
3"(80mm) 124 99
4"(100mm) 339 175
6"(150mm) 559 395
8"(200mm) 1042 640
10"(250mm) 1748 1000
12"(300mm) 2442 1440
Seat Type and Allowable Leakage
Soft Double Seat:Tight Shutoff
Fire Safe Seat:
Metal Seat:ANSI Class V or ANSI Class IV

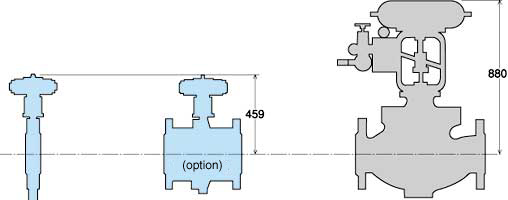

Wafer Type
UNICON
51kg
Double Flanged Type
UNICON
92kg
Flanged Type
Globe Valve
225kg
UNIPOWER
Spring Return
Wafer Type
UNIPOWER
Spring Return
Flange Type
UNIPOWER
Single Flange Type
UNIPOWER
Single Flange Type
(Cryogenic,High Temperature)
SPECIFICATIONS
Rating ANSI Class 150, 300, 600
JIS 10K, 20K, 30K, 40K, 63K
Seat Seatless, Soft Double, Fire Safe, Metal
Nominal Size 2"(50mm) - 48"(1200)
