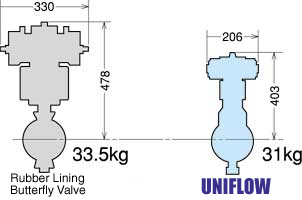

Item Rubber Lining Butterfly Valve Soft Single Seat Seat Deformation due to fluid pressure,temperature,torque Bi-directional shutoff sealing Seat Life 3,000 cycle More than 100,000 cycles Working temperature -10℃〜80℃ -45℃〜180℃

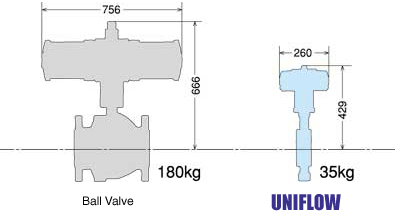

						Item Ball Valve Soft Double Seat Seat Bi-directional shutoff sealing Bi-directional shutoff sealing Seat Life 10,000 cycles More than 100,000 cycles Open/Close cycle Life 100,000 cycles More than 500,000 cycles

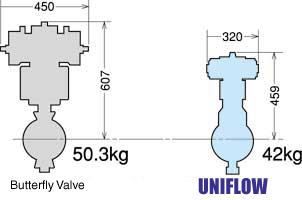

						Item High performance Butterfly Valve Metal Seat Metal Seat Sealing Allowable leakage ISO5208 Leak rate C ANSI class �X (smaller than 12") ANSI class �WＸ10-1 (over 14") Max. Pressure 4.9MPa 10.2MPa Max. Temperature 600℃ 650℃ Sealing Life Leakage increases due to partial abrasion 20,000 cycles No change in leakage

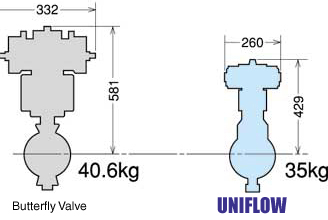

						Item High performance Butterfly Valve Soft Single Seat Soft Double Seat Sealing Bi-directional Tight shutoff Leak zero Leak zero Max. Pressure 1.96MPa 1.0MPa 10.2MPa Max. Temperature 200℃ 180℃ 200℃ Min. Temperature -20℃ -45℃ -45℃ Sealing Life − More than 100,000 cycles More than 100,000 cycles Open/Close cycle Life − More than 500,000 cycles More than 500,000 cycles

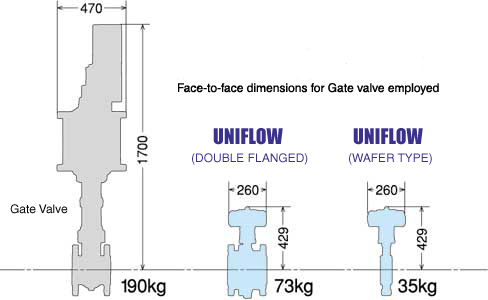

						Item Gate/Parallel Slide Valve Soft Double Seat Sealing Allowable Leak rate:API598 Bi-directional Leak zero Sealing Life − More than 100,000 cycles
